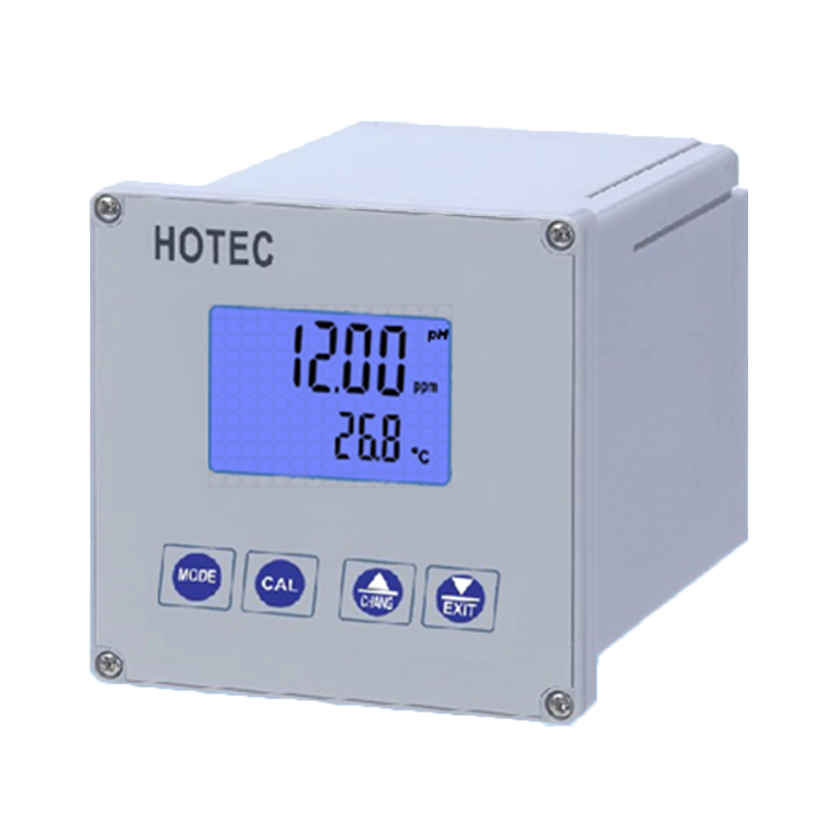

![[UEC-600C]微電腦標準型導電度分析儀 - Microprocessor Conductivity Analyzer](/upfile/201708/2017081141504273.jpg "[UEC-600C]微電腦標準型導電度分析儀 - Microprocessor Conductivity Analyzer")
設計特點：
特殊外殼設計,防水效果佳,防水型外殼,通過IP-65 認證。
液晶顯示藍色背光(LCD),耐溫至90℃不變黑,適合戶外監測。
校正時斜率及零點錯誤顯示,校正后電極斜率自動顯示。
HI/LO遲滯時間可調整設定,可同時顯示（us/ms,℃）。
RS-485接口輸出,可同時傳輸（us/cm,℃）,（ms/cm,℃）。
規 格 (Specifications):
型 號 (Model) | UEC-600C | |
測試范圍 (Range) | 0~20.00,200.0, 2000us,0~20.00ms/cm【K=1.0】 | 0~100℃ |
精 確 度 (Accuracy) | ±1% full scale | 0.1℃±1 digit |
解 析 度 (Resolution) | 0.01,0.1, 1 us/cm ,0.01 ms/cm【k=1.0】 | 0.3℃ |
溫度補償 (Temp.Comp.) | Manual fixed resistance 5KΩ for 25 ℃ ATC Probe NTC-5K for 25℃ | |
液晶顯示 (Display ) | 6 1/2,LCD Display with function indicator Blue back light | |
操作溫度 (Oper.Temp.) | 0 to 65℃ | |
模擬輸出 (Current output) | DC 4-20mA Isolated Max. Load 600Ω | |
通訊接口 (Communication) | RS-485 Modbus for (us,ms and ℃) | |
控制動作 (Control action) | Hi/Lo [Two relays] | |
設 定 點 (Set point) | H1/H2,L1/L2 (4 point) | |
接點電流 (Current on contact) | 110VAC Max.5A/240VAC Max.3A | |
電 源 (Power) | 110/240VAC,50/60Hz ±15% | |
切割尺寸 (Dimension) | 92*92*125mm H*W*D(Panel mounting) | |
防潮等級 (Enclosure) | IP-65 | |
